Easca Hire provide a quality, reliable service to assist you with all your mobile height rental requirements.
Get in touch with us today!
At Easca Hire, we provide daily, weekly, monthly, and long-term hire. Browse our range of height equipment below, to find the type of product you’re looking for or call us today on 087-4599548!
Articulated Boom Lift (12.2m)
Our 12.2m Articulated Boom Lift has a low-weight chassis and a powerful four-wheel-drive system.
Its telescopic upper boom provides increased accuracy when positioning the platform.
The self-propelled boom lift’s deep tread rough terrain tyres provide extra grip even on soft ground.
[A] Max Working Height – 12.2m (40′)
[B] Platform Height – 10.2m (33’6″)
[C] Working Outreach – 6.1m (20′)
[D] Machine Height – 1.95m (6’5″)
[F] Machine Width – 1.6m (5’3″)
[J] Machine Length – 4.1m (13’5″)
Cage Depth – 0.65m (2’2″)
Cage Width – 1.1m (3’7″)
Turning Radius – 4.3m (14ft 1in)
Gradeability – 30% / 17°
Safe Working Load – 200kg 440lbs
Travel Speed – 3.7km/h 2.2mph
Power Options
Bi-Energy (Engine & Battery)
Articulated Boom Lift (16m)
Suitable for narrow spaces – Narrow body with almost zero tail sweep.
Green – Fully battery-powered, silent, zero emissions, long battery life, especially suitable for indoor work.
Precision performance – Joysticks with variable proportional control, accuracy in reaching the operation target.

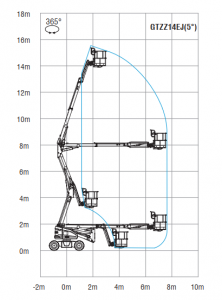

Max Working Height – 16m (52’6″)
Max Platform Height – 14m (45’11”)
Max Horizontal Extension – 7.6m (24’11”)
[A] Length-Stowed – 6m (19’8″)
[B] Width-Stowed – 1.73m (5’8″)
[C] Height-Stowed – 2m (6’7″)
[D] Wheelbase – 1.9m (6’3″)
Ground Clearance – 0.22m (8.7″)
Platform Dimensions
(L×W×H) – 1.45×0.85×1.1m (57×33.5×44″)
Platform Capacity (Unrestricted) – 230kg (507lbs)
Turntable Rotation – 355°
Platform Rotation – 160°
Drive Speed-Stowed – 5.2km/h (3.2mph)
Drive Speed-Raised – 0.8km/h (0.5mph)
Gradeability – 30％
Turning Radius (Inside) – 1.15m (3’9″)
Turning Radius (Outside) – 3.51m (11’6″)
Turntable Tailswing – Tilt Rating – 5°
Drive×Steer – 2WD×2WS
Tyres-Solid – 240/55D17.5 Foam-filled tyres
Batteries – 8×6V,420 Ah
Auxiliary Power Unit – 12V DC
Hydraulic Tank Capacity – 40L(8.8gal)
Weight – 7,100kg (15,653lbs)
Vertical Mast Lift (6.5m)
Zero Inside Turning Radius
Narrow Access
Low Entry Height
Max Working Height (Indoor/ Outdoor) – 6.47m (20’8″)/ 5.40m (17’1″)
Max Platform Height (Indoor/ Outdoor) – 4.47m (14’8″)/ 3.40m (11’1″)
[A] [B] Platform Dimensions (LxW) – Standard retracted – 0.89 x 0.75m (35″ x 29.5″)
[C] Height-Stowed – 1.78m (5’10”)
[D] Length-Stowed – 1.35m (4’5″)
[E] Width – 0.75m (2’5.5″)
Ground Clearance (Center) – 6cm (2’5″)
Max Platform Capacity (in/out) – 227kg (500lbs)
Drive Speed-Stowed – 4km/h (2.5mph)
Drive Speed-Raised – 0.8km/h (0.5mph)
Gradeability- 30％
Turning Radius (Inside/ Outside) – 0cm/ 1.32m (4’4″)
Tilt Rating – Front to Back/Side to Side) – 3°/ 1.5°
Tyres-Spec/Type – 25x8x20cm (10’x3’x8′) solid
Auxiliary Power Unit – 24V (3x6v 225Ah)
Hydraulic Tank Capacity – 8.33L (2.2gal)
Weight – 988kg (2,178lbs)
Vertical Mast Lift (10.3m)
Easily passes through most standard doors – Zero tail sweep and zero tail swing.
Unique disassembly system with integrated boom.
Unique movable pothole protection system.
Max Working Height – 10.3m (33’9.5″)
Max Platform Height – 8.3m (27’3″)
Max Horizontal Extension – 3.3m (10’10”)
Vertical Jib Rotation – +70°/-50°
[A] Length-Stowed – 2.97m (9’9″)
[B] Width-Stowed – 0.99m (3’3″)
[C] Height-Stowed – 1.99m (6’6″)
[D] Wheelbase – 1.2m (3’11”)
Ground Clearance (Pothole Guard Stowed) – 0.06m (2’4″)
Ground Clearance (Pothole Guard Deployed) – 0.02m (8″)
Platform Dimensions
(L×W×H) – 0.99×0.7×1.1m (39×27.5×43″)
Platform Capacity (Unrestricted) – 200kg (440lbs)
Drive Speed-Stowed – 4km/h (2.5mph)
Drive Speed-Raised – 0.6km/h (0.37mph)
Gradeability- 25％
Turning Radius (Outside) – 1.55m (5’1″)
Tilt Rating – Front to Back/Side to Side) – 3°/ 3°
Tyres-Spec/Type – 406x127mm (16×5″) solid
Batteries – 6Vx4/240 Ah
Auxiliary Power Unit – 24V DC
Hydraulic Tank Capacity – 13L (2.9gal)
Weight – 2,678kg (5,904lbs)
JCB 540-170 Telescopic Handler
The JCB 540-170 construction Loadall is a telehandler that’s designed to meet the challenges of any site head-on.
A JCB Construction Loadall is extremely manoeuvrable; the compact wheelbase, large steering lock angles and 3 steer modes save valuable time on site.
The Stage V DieselMAX engine produces its power and torque at low engine speeds, which makes it highly responsive to operate.
Max Lift Height – 16.7m
Max Lift Capacity – 4,000 kg
Max Engine Power – 55 kW
Max Reach – 12.5 m
Travel Speed – 29 kph
Operating Weight – 12,060 kg
The Stage V DieselMAX engine produces its power and torque at low engine speeds, which makes it highly responsive to operate.
The latest Stage V legislation compliant 55kW (75HP) engine from JCB offers a combined DPF/ DOC after treatment package achieving Stage V emissions levels without the need for DEF injection, minimising the impact on machine service and operation.
Electric Series Scissor Lifts (5.8m)
Compact – Easily passes through standard doors and can access elevators.
Reduced Maintenance Time – Exclusive open chassis reduces daily maintenance time.
Efficient & Environmentally Friendly – Higher work efficiency. Environmental protection, zero emissions.
Max Working Height – 5.8m (19′)
[A] Max Platform Height – 3.8m (12’6″)
[B] Max Horizontal Extension – 0.6m (23.6″)
[C] Length-Stowed – 1.42m (4’8″)
[D] Width-Stowed – 0.76m (2’6″)
[E] Height-Stowed (Rail folded) – 1.67m (5’6″)
[E] Height-Stowed (Rail unfolded) – 1.97m (6’6″)
[F] Wheelbase – 1.11m (3’8″)
Ground Clearance (Pothole guard stowed) – 65mm (2’5″)
Ground Clearance (Pothole guard deployed) – 20mm (0.75″)
Platform Dimensions (L×W×H) – 1.34m×0.7m×1.1m (4’5″×2’4″×3’7″)
Platform allowable occupants (Indoor/ Outdoor) 2 Persons (240kg)/ 1 Person
Platform Capacity (Unrestricted) – 240kg (529lbs)
Drive Speed-Stowed – 4km/h (2.5mph)
Drive Speed-Raised – 0.8km/h (0.5mph)
Gradeability – 25％
Turning Radius (Inside/Outside) – 0.3m (12″)/ 1.35m (4’5″)
Tyre-Solid – 230 x 80mm (9″ x 3″)
Batteries – 12V x 2/115Ah
Power Source – 24V DC
Drive Mode – Motor, Rear-wheel
Hydraulic System Capacity – 5L (1.1gal)
Weight – 880kg (1,940lbs)
CSA/AS/CU-TR
Electric Series Scissor Lifts (7.8m)
More Reliable Performance – Bumper rail protection. Automatic braking system
Reduced Maintenance Costs – Rapid, convenient transportation with two-way forklift slot.
Efficient & Environmentally Friendly – Higher work efficiency. Environmental protection, zero emissions
Max Working Height – 7.8m (25’7″)
[A] Max Platform Height – 5.8m (19′)
[B] Max Horizontal Extension – 0.9m (3′)
[C] Length-Stowed – 1.8m (5’11”)
[D] Width-Stowed – 0.79m (2’7″)
[E] Height-Stowed (Rail folded) – 1.88m (6’2″)
[E] Height-Stowed (Rail unfolded) – 2.14m (7′)
[F] Wheelbase – 1.33m (4’4″)
Ground Clearance (Pothole guard stowed) – 75mm (3″)
Ground Clearance (Pothole guard deployed) – 24mm (0.95″)
Platform Dimensions (L×W×H) – 1.64m×0.76m×1.1m (5’5″×2’6″×3’7″)
Platform allowable occupants (Indoor/ Outdoor) 2 Persons (227kg)/ 1 Person
Platform Capacity (Unrestricted) – 227kg (500lbs)
Drive Speed-Stowed – 4km/h (2.5mph)
Drive Speed-Raised – 0.8km/h (0.5mph)
Gradeability – 25％
Turning Radius – 1.49m (4’11″)
Tyre-Solid – 323 x 100mm (12.7 x4″)
Batteries – 6Vx4/255 Ah
Power Source – 24V DC
Drive Mode – Motor, front-wheel
Hydraulic System Capacity – 15L(3.3gal)
Weight – 2090kg (4,608lbs)
CSA/AS/CU-TR/KCS
Electric Series Scissor Lifts (10.1m)
More Reliable Performance – Bumper rail protection.
Efficient & Environmentally Friendly – Higher work efficiency. Environmental protection, zero emissions.
Max Working Height – 10.1m (33’2″)
[A] Max Platform Height – 8.1m (26’7″)
[B] Max Horizontal Extension – 0.9m (3′)
[C] Length-Stowed – 2.46m (8′)
[D] Width-Stowed – 0.83m (2’9″)
[E] Height-Stowed (Rail Folded) – 1.96m (6’5″)
[E] Height-Stowed (Rail Unfolded) – 2.36m (7’9″)
[F] Wheelbase – 1.88m (6’2″)
Ground Clearance (Pothole Guard Stowed) – 0.1m (4″)
Ground Clearance (Pothole Guard Deployed ) – 25m (0.98″)
Platform Dimensions (L×W×H) – 2.30m×0.8m×1.1m (7’67″×2’8″×3’7″)
Platform Allowable Occupants
– 2 Persons Indoor/ 1 Persons Outdoor
Platform Capacity – 250kg (551lbs)
Drive Speed-Stowed – 4km/h (2.5mph)
Drive Speed-Raised – 0.8km/h (0.5mph)
Gradeability – 25％
Turning Radius – Inside 0 / Outside 2.1m
Tyres-Solid – 380 x 125mm (15×5″)
Batteries – 6Vx4/255 Ah
Power Source – 24V DC
Drive Mode – Motor, front-wheel
Hydraulic System Capacity – 7L(1.5gal)
CSA/AS/CU-TR/KCS
Electric Series Scissor Lifts (12m)
More Reliable Performance – Bumper rail protection.
Reduced Maintenance Costs – Rapid, convenient transportation with two-way forklift slot.
Efficient & Environmentally Friendly – Higher work efficiency. Environmental protection, zero emissions
Max Working Height – 12m (39’5″)
[A] Max Platform Height – 10m (32’10”)
[B] Max Horizontal Extension – 0.9m (3′)
[C] Length-Stowed – 2.45m (8′)
[D] Width-Stowed – 1.17m (3’10”)
[E] Height-Stowed (Rail folded) – 1.86m (6’2″)
[E] Height-Stowed (Rail unfolded) – 2.48m (8’2″)
[F] Wheelbase – 1.88m (6’2″)
Ground Clearance (Pothole Guard Stowed) – 0.1m (4″)
Ground Clearance (Pothole Guard Deployed) – 25mm (.98″)
Platform Dimensions (L×W×H) – 2.30m×1.15m×1.1m (7’6.5″×3’9″×3’7″)
Platform Allowable Occupants
– 2 Persons Indoor/ 1 Persons Outdoor
Platform Capacity – 250kg (551lbs)
Drive Speed-Stowed – 4km/h (2.5mph)
Drive Speed-Raised – 0.8km/h (0.5mph)
Gradeability – 25％
Turning Radius – Inside 0 / Outside 2.1m
Tyres-Solid – 380 x 125mm (15×5″)
Batteries – 6Vx4/255 Ah
Power Source – 24V DC
Hydraulic System Capacity – 7L(1.5gal)
CSA/AS/CU-TR/KCS
Electric Series Scissor Lifts (12m)
More Reliable Performance – Bumper rail protection.
Reduced Maintenance Costs – Rapid, convenient transportation with two-way forklift slot.
Efficient & Environmentally Friendly – Higher work efficiency. Environmental protection, zero emissions
Max Working Height – 12m (39’5″)
[A] Max Platform Height – 10m (32’10”)
[B] Max Horizontal Extension – 0.9m (3′)
[C] Length-Stowed – 2.45m (8′)
[D] Width-Stowed – 1.17m (3’10”)
[E] Height-Stowed (Rail folded) – 1.86m (6’2″)
[E] Height-Stowed (Rail unfolded) – 2.48m (8’2″)
[F] Wheelbase – 1.88m (6’2″)
Ground Clearance (Pothole Guard Stowed) – 0.1m (4″)
Ground Clearance (Pothole Guard Deployed) – 25mm (.98″)
Platform Dimensions (L×W×H) – 2.30m×1.15m×1.1m (7’6.5″×3’9″×3’7″)
Platform Allowable Occupants
– 2 Persons Indoor/ 1 Persons Outdoor
Platform Capacity – 250kg (551lbs)
Drive Speed-Stowed – 4km/h (2.5mph)
Drive Speed-Raised – 0.8km/h (0.5mph)
Gradeability – 25％
Turning Radius – Inside 0 / Outside 2.1m
Tyres-Solid – 380 x 125mm (15×5″)
Batteries – 6Vx4/255 Ah
Power Source – 24V DC
Hydraulic System Capacity – 7L(1.5gal)
CSA/AS/CU-TR/KCS
